If your bottom bracket measurement is off by a few millimeters, you feel it. Creaks start, bearings wear early, chainline goes wonky, and your new parts may not even fit. Get it right and the bike feels quiet, tight, and fast.
To measure the bottom bracket correctly, confirm press fit or threaded; record shell width, press fit bore, and crank axle type. Clean faces, zero calipers, verify thread direction and pitch, check roundness. Errors: mixing standards, measuring over paint, misreading threads, losing spacers.
In this article, you’ll find out what bottom bracket you have and why it matters, the exact tools you need, and a step-by-step measuring process.
Bottom Bracket Measurement: Quick How To + Pitfalls

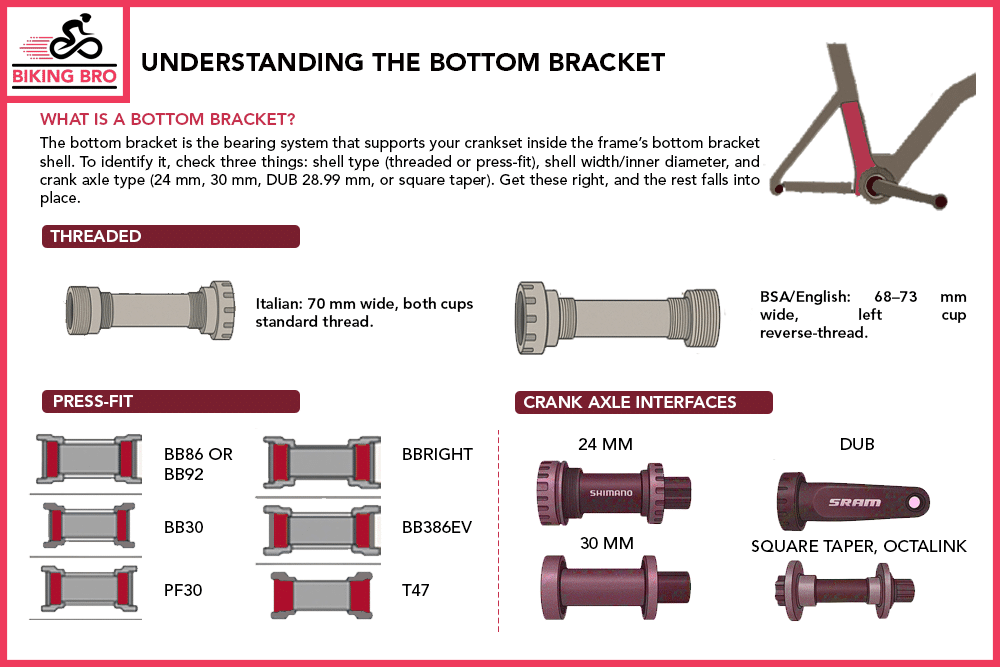

1. Understanding the Bottom Bracket
Your bottom bracket is the quiet hero of every ride. It sits inside the frame’s BB shell, holds the crank axle, and lets the cranks spin smoothly.
When the size or standard is wrong, you get creaks, drag, and poor chainline. When it’s right, the bike feels silent and efficient.
I once ordered a BB30 unit for a PF30 frame and spent a weekend chasing a creak that was really a mismatch. Lesson learned.
1.1 What is a Bottom Bracket?
A bottom bracket is a set of bearings plus an axle or cups that support your crankset inside the frame. The frame section it lives in is the “bottom bracket shell.”
To identify what you have, you care about three things. One, shell type, threaded or press fit. Two, shell width and inner diameter, these determine the bearing or cup size.
Three, crank axle type, 24 mm, 30 mm, DUB at 28.99 mm, or a square taper cartridge. Get these three right and everything else falls into place.
1.2 Types of Bottom Brackets
Threaded:
- BSA or English: Most common. Shell width is usually 68 or 73 mm, cups thread in from both sides with a left cup that is reverse threaded.
- Italian: Less common. 70 mm shell width, both cups thread normally. Good to check, because mixing these up ruins threads.
Press fit:
- BB86 or BB92: Cups press into a 41 mm shell ID. The road is often 86.5 mm wide, MTB is near 92 mm.
- BB30: Bearings sit directly in a 42 mm shell ID, no cups.
- PF30: Similar to BB30 but uses cups in a 46 mm shell ID.
- BBRight: Cervélo’s take. 46 mm ID, asymmetric shell width.
- BB386EVO: Wide road shell, 46 mm ID, 86.5 mm width.
- T47: Threaded again, 47 mm ID. Modern, stiff, service-friendly.
Crank axle interfaces:
- 24 mm: Shimano Hollowtech II, some FSA.
- 30 mm: Many performance cranks.
- DUB: SRAM, 28.99 mm.
- Square taper, Octalink, ISIS: Older standards, still around in commuters and vintage builds.
Match shell type, width, and ID to the right bearing or cup, then match crank axle size. That is the whole game.
2. Why Proper Measurement Matters
Tiny numbers make a big difference here. A half-millimeter error can turn a smooth bike into a noisy grind. The bottom bracket sets your chainline, bearing load, and crank alignment.
When those are right, you get quiet power and a long bearing life. When they are off, every ride feels a bit sticky.
I once “eyeballed” a shell width on a travel bike and spent a week wondering why it felt like pedaling through sand. The fix was a 2.5 mm spacer I skipped.
2.1 How Incorrect Measurements Affect Performance
- Noise under load. Cups that are cocked or bearings with side load creak on every hard pedal stroke.
- Drag and fatigue. Too much preload or a tight bore squeezes the bearings. You waste energy, and your legs feel dull.
- Bad chainline. Rings sit inboard or outboard. Shifts get hesitant, and the chain rubs in big cogs.
- Accelerated wear. Overloaded bearings pit and contaminate fast. You replace parts way sooner than you should.
- Wobble and play. Undersized ID or missing spacers let the axle rock, which can nick the frame and chew seals.
- Thread damage. Guessing BSA vs Italian or forcing cups ruins shells that are hard to recover.
2.2 Preventing Issues with the Right Measurement
- Confirm the three essentials. Shell type, shell width, and shell inner diameter. Then match the crank axle size.
- Measure on a clean shell. Remove paint from lips and grime from the faces. Zero the calipers before every reading.
- Use the right references. For press fit, measure ID in several spots to catch ovalization. For threaded, verify pitch.
- Record your spacer stack. Photos and notes save your chainline when you reinstall.
- Dry fit first. Cups should start by hand, square and smooth. If they bind, stop and recheck numbers.
- Set preload and torque correctly. Follow the crank maker’s spec so bearings aren’t crushed or floating.
- Face and chase when needed. A quick pass on a rough shell gives you parallel faces and repeatable measurements.
- When in doubt, ask. Check the frame maker’s BB standard and the crank’s compatibility chart before buying.
Measure twice, buy once, ride happily. That is the whole point.

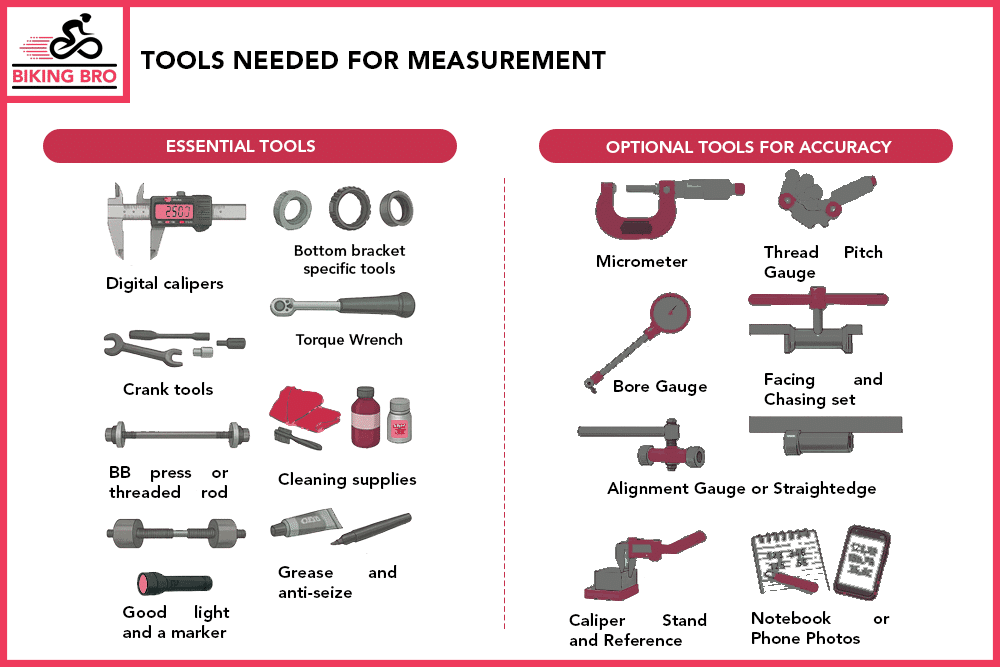

3. Tools Needed for Measurement
You do not need a full machine shop to nail bottom bracket measurements, but a few right tools make the job fast and stress-free. The goal is simple.
Know your shell type, shell width, shell inner diameter, and crank axle size. With the list below, you can confirm those numbers in minutes and avoid buying the wrong parts.
3.1 Essential Tools
- Digital calipers: Your MVP. Measure shell inner diameter, outer cup diameter, and axle size to 0.01 mm. Zero them before every session.
- Steel ruler or machinist’s rule: For shell width and quick checks when calipers are awkward.
- Bottom bracket specific tools: The right cup wrench or socket for your standard. Think Hollowtech II tool, PF30 drifts, or T47 sockets.
- Crank tools: 8 mm hex, 10 mm hex, or crank puller for square taper and ISIS. Many modern cranks are self-extracting, but check first.
- Torque wrench: 4 to 40 Nm range covers most crank and cup installs. Correct torque prevents creaks.
- BB press or threaded rod kit: For press fit cups. A proper press keeps cups square to the shell.
- Cleaning supplies: Isopropyl alcohol, rags, and a small brush to get the shell spotless before measuring.
- Grease and anti-seize: Grease for bearings and press fits. Anti-seize for steel into alloy threads.
- Good light and a marker: Shine inside the shell, mark readings, and note thread direction.
3.2 Optional Tools for Accuracy
- Micrometer: Verifies crank spindle diameter with higher confidence than calipers.
- Thread pitch gauge: Confirms BSA vs Italian and avoids cross threading.
- Bore gauge: Checks shell roundness on press fit frames. Helpful if you suspect ovalization.
- Facing and chasing set: Squares and cleans threaded shells so measurements and fits stay true.
- Alignment gauge or straightedge: Confirms both faces of the shell are parallel.
- Caliper stand and reference block: Lets you measure shell width repeatably.
- Feeler gauges: A Quick way to sense tiny steps or paint build-up at the shell faces.
- Notebook or phone photos: Log your numbers. Next time, you buy parts with confidence.
Use essentials to identify your standard. Pull out the optional kit when tolerances look sketchy.
4. Step-by-Step Guide to Measuring
Getting accurate bottom bracket numbers is easier than it looks. You just need a clean shell, the right tools, and a simple checklist. Follow this, and you will know exactly what to buy and how it should fit.
4.1 Preparation and Safety Measures
- Stabilize the bike. Use a work stand. If you do not have one, flip the bike and protect the saddle and bars.
- Remove the crankset. Loosen the pinch bolts or the self-extracting bolt. Catch every spacer in order. I snap a photo of the stack on my phone.
- Pull the bottom bracket. Use the correct tool for your standard. No brute force.
- Clean the shell. Degrease, wipe, and lightly scrape paint ridges at the faces. A dirty shell can throw calipers by half a millimeter. I learned that the hard way.
- Inspect for clues. Look for markings like BSA 68, ITA 70, PF30, BB86, or T47. Note any visible threads.
- Zero your tools. Calibrate calipers and set your torque wrench back to zero after use.
- Protect yourself. Gloves, eye protection, and a bright light so you actually see the bore.
- Log readings. Write them down or add them to the photo notes.
4.2 Detailed Measurement Steps
- Identify shell type. Threads inside the frame mean threaded. A smooth bore means press fit.
- Measure shell width. Calipers across the faces. Common widths are 68 or 73 mm for BSA, 70 mm for Italian, 86.5 mm for BB86, and about 92 mm for MTB press fit.
- Measure inner diameter. For press fit only. Typical IDs are 41 mm for BB86 or BB92, 42 mm for BB30, 46 mm for PF30 and BB386EVO, and 47 mm for T47.
- Confirm thread standard. If threaded, use a thread pitch gauge. BSA is 1.37 x 24 tpi with a reverse threaded drive side. Italian is 36 x 24 with normal threads on both sides.
- Measure the crank axle. Calipers on the polished section. Expect 24 mm, 30 mm, or SRAM DUB at 28.99 mm.
- Check shell faces. Place a straightedge across. Look for paint steps or dings that could skew the width.
- Record spacer stack. Measure any spacers you removed so you can rebuild the same chainline.
- Cross-check. Match shell type, width, and ID to the correct BB standard, then match the crank axle.
- Dry fit verification. Lightly seat cups or bearings by hand. They should align cleanly without tilting.
- Final note. If any number looks odd, re-clean and re-measure. One clean redo beats a week of creaks.

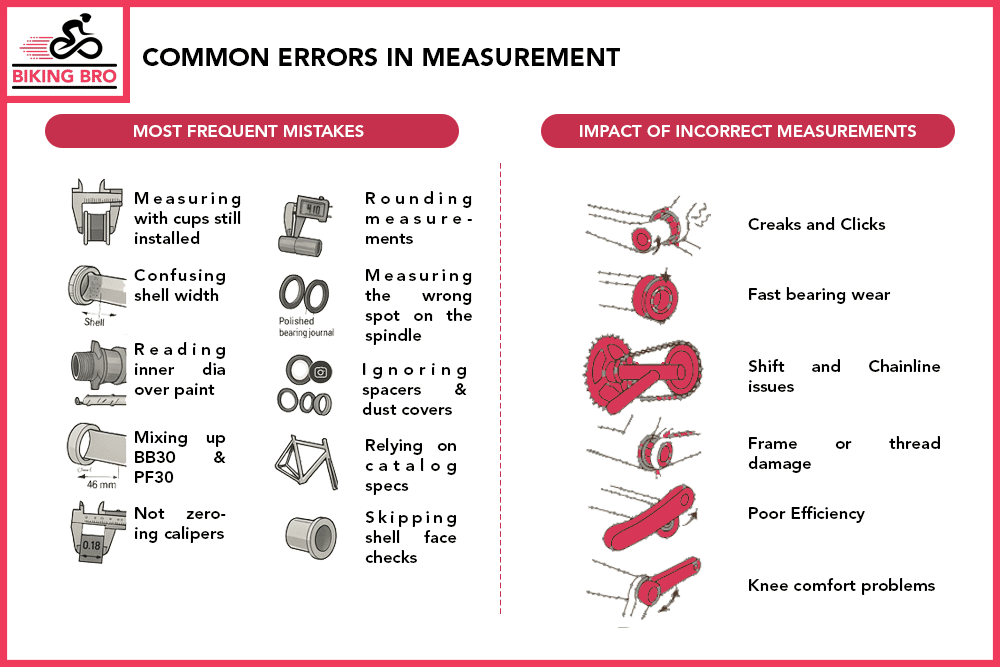

5. Common Errors in Measurement
Even careful home mechanics slip up when measuring a bottom bracket. Most problems come from rushing, guessing the standard, or measuring the wrong thing.
Here is what to watch for so you do not buy twice and wrench all weekend.
5.1 Most Frequent Mistakes
- Measuring with cups still installed. You must measure the bare frame shell, not the BB hardware.
- Confusing shell width with crank spindle length. Shell width is the frame dimension. Spindle length belongs to the crank.
- Reading inner diameter over paint or grime. Painting the lips adds 0.2 to 0.5 mm. Clean and lightly deburr first.
- Mixing up BB30 and PF30. BB30 shell ID is 42 mm. PF30 uses 46 mm with cups.
- Guessing BSA vs Italian. Do not assume. Use a thread pitch gauge or read the markings.
- Not zeroing calipers. A 0.10 mm offset makes press fits miserable.
- Rounding measurements. Write 41.0 mm, not “about 41.” Tolerances are tight.
- Measuring the wrong spot on the spindle. Use the polished bearing journal, not the center where coatings vary.
- Ignoring spacers and dust covers. Photograph the order. Missing a 2.5 mm spacer kills the chainline.
- Using worn tools. Loose jaws or bent rulers give junk data.
- Skipping shell face checks. A high paint edge or ding fakes a wider shell.
- Relying on catalog specs. Frames change across years. Measure your actual bike.
I once chased a chronic creak only to learn I measured a PF30 shell at 46.3 mm through paint. Cleaned it, rechecked at 46.0 mm, installed new cups, and it’s silent now.
5.2 Impact of Incorrect Measurements
- Creaks and clicks. Misfit bearings move under load and get noisy.
- Fast bearing wear. Side load from wrong spacers or shell width causes bearings.
- Shift and chainline issues. Rings sit outboard or inboard, so shifting feels rough and the chain rubs.
- Frame or thread damage. Cross threading or forcing cups into a tight bore scars the frame.
- Poor efficiency. Draggy bearings feel like a light brake is on.
- Wobble and play. Wrong ID or missing spacers let the crank rock.
- Knee comfort problems. Q factor or chainline errors change your pedaling stance.
- Wasted money and time. Returns, duplicate orders, and extra labor pile up.
Measure clean, measure twice, log the numbers, then buy. That is the simplest way to a quiet, fast bike.
6. Troubleshooting Measurement Issues
Even when you follow the playbook, numbers can still feel off. The trick is spotting what is a measurement error versus a real frame or part issue. Use the checks below like a quick flowchart.
If two or more red flags show up, pause and re-measure before you buy more parts. I keep a sticky note on my bench with these checks. It has saved me from at least three wrong orders.
6.1 How to Spot Measurement Problems
- Noisy test rides. Fresh install, but you hear creaks or clicks under load.
- Hard installs. Cups need heavy force to start or become skewed.
- Binding cranks. Crank spins but slows fast when you flick it by hand.
- Play at the crank. Side to side wiggle even with a preload set.
- Inconsistent readings. Shell width or ID varies by more than 0.1 mm around the circle.
- Mismatched markings. The frame says BSA 68, yet you measured 70 mm.
- Spacer confusion. You cannot rebuild the same stack you removed.
- Tool marks. Scars on cup faces or shell edges hint at cross threading or a cocked press.
6.2 How to Fix Incorrect Measurements
- Clean and reset. Strip grease and paint the lips on the faces. Zero the calipers again.
- Measure in multiple spots. Take three ID readings at 12, 4, and 8 o’clock. Average them.
- Verify the standard. Read shell markings. Use a thread pitch gauge for BSA vs Italian.
- Check parallel faces. Lay a straightedge across the shell. If it rocks, get the faces cleaned up.
- Rebuild the spacer stack. Use your photos. Measure each spacer so the chainline returns to spec.
- Set preload correctly. Tighten until play just disappears, then torque pinch bolts to spec.
- Replace damaged parts. Pitted bearings or burred cups will never be quiet.
- Use proper presses and drifts. Press cups square. If they bind, stop and recheck numbers.
- When in doubt, face and chase. For threaded shells, a quick service restores alignment.
- Still stuck? Ask a trusted shop to check roundness and alignment. Five minutes on their gauges can save hours at home.
