Think rim width is just something engineering nerds argue about on forums? Think again. The gap between your brake tracks quietly decides how your bike corners, soaks up bumps, and even whether that shiny new tire will squeeze past your frame.
To measure rim width: clean rim, zero calipers. Tire-on: deflate, push sidewall aside, place inside jaws on bead seats at 12, 4, 8 o’clock; average. Tire-off: remove tire, measure internal bead-seat and external flange-to-flange; average, compare to spec, log for future tire picks.
In this quick guide, you’ll learn exactly how to measure rim width-tire on or off-and grab the sweet-spot numbers that keep speed, safety, and comfort perfectly dialed.
The Most Accurate Way to Measure Your Rim Width
Rim width shapes ride feel, safety, and tire fit, so nail it first. Grab your tools and measure: a fast tire-on check for convenience or a tire-off deep dive for precision, following the steps that follow.

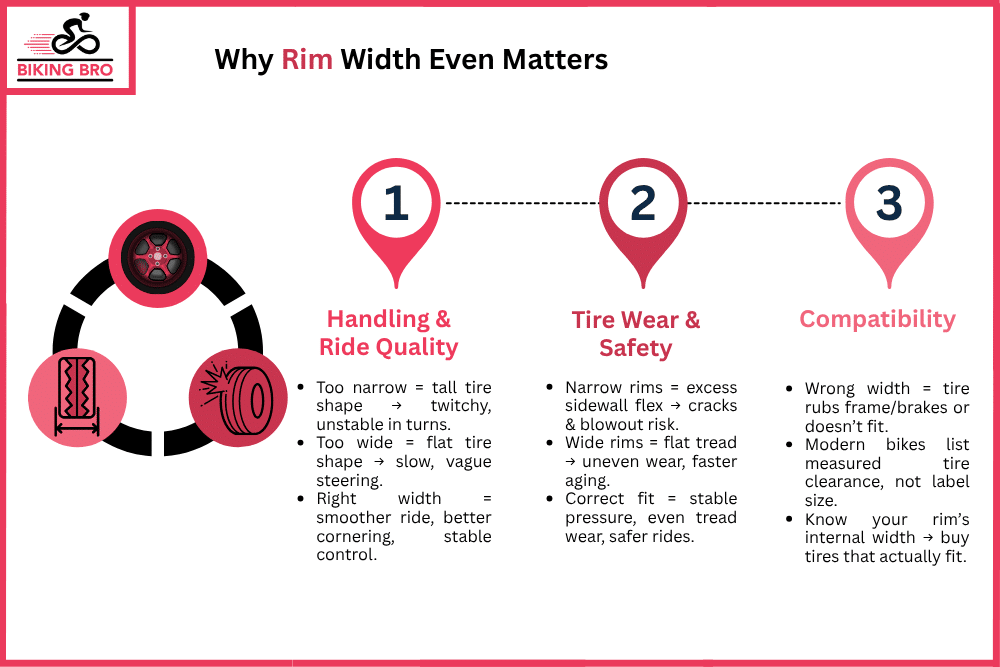

1. Why Rim Width Even Matters
1.1 Handling & Ride Quality
Picture your wheel as the only handshake between bike and road. A rim that’s too skinny pinches the tire into a tall, light bulb shape. The result? A twitchy ride that feels nervous in fast turns.
Go too wide and the sidewalls flatten, making steering feel slow and vague. Hit the sweet spot and you’ll notice it right away.
Cornering gets confident, bumps mellow out, and your bike stops ping-ponging across cracks.
I swapped to a 23 mm internal rim last year and the difference on my local switchbacks felt like I’d upgraded the whole bike.
1.2 Tire Wear & Safety
Rim width also decides how your rubber ages. A pinched tire flexes a ton with every rotation, cooking the sidewalls and creating those scary little snake cracks.
Over-spread tires do the opposite: they flatten the tread so the center wears into a square sooner. Both setups raise blow-out risk, especially on hot summer descents when pressure spikes.
Get the match right and tread wears evenly, pressure stays stable, and you dodge mid-ride “pssst” dramas.
1.3 Compatibility (Tires, Frame, Brakes)
Finally, rim width is the gatekeeper for what rubber you can actually run. Too wide and your dream 42 mm gravel tire rubs the chainstays; too narrow and it bulges past brake pads or disc calipers.
Modern frames list max measured width, not label width, so knowing your true rim dimension keeps you from buying rubber that won’t even spin. Measure once, shop once, ride happily.
If you’re unsure how to check your current setup, my article on how to measure wheel size on your bike walks you through it step by step.
2. Gear Checklist (Tools You Actually Need)
2.1 Digital Calipers
The hero of this job. Cheap plastic versions flex and lie; aim for a metal caliper with 0.01 mm resolution and a big LCD. Tap the zero button before every reading so you don’t chase phantom millimeters.
2.2 Tape Measure (Backup)
Callipers dead? A flexible steel tape keeps the session alive. Wrap it around the rim, mark the overlap, and divide by π to cross-check your caliper number.
It’s backyard-math accurate enough to sniff out big errors.
2.3 Tire Levers & Floor Pump
If you’re going “tire-off,” plastic levers pop the bead without chewing carbon hook edges. Two levers usually do it; three if the tire’s stubborn. The floor pump goes right after.
Reseat the bead, pump to 20-30 psi, and listen for even pops that confirm alignment.
Check out my article on the best bike floor pumps that are necessary for your home bike maintenance kit.
2.4 Gloves & Microfiber Cloth
Greasy fingerprints sabotage precision. Nitrile gloves keep your digits clean and improve grip on slick sidewalls.
A microfiber cloth wipes away grit before the caliper jaws close and doubles as a pad to rest the wheel on so brake rotors stay scratch-free.
Feel free to scroll through my article on the best bike chain cleaners to ensure that your bicycle components get a thorough clean.
2.5 Optional but handy
A small flashlight to spot bead seats inside deep rims, plus a notepad or phone app for instant logging. All told, you’re looking at gear that fits in one shoebox and costs less than a halfway-decent new tire.
Yet it saves you from buying the wrong ones.

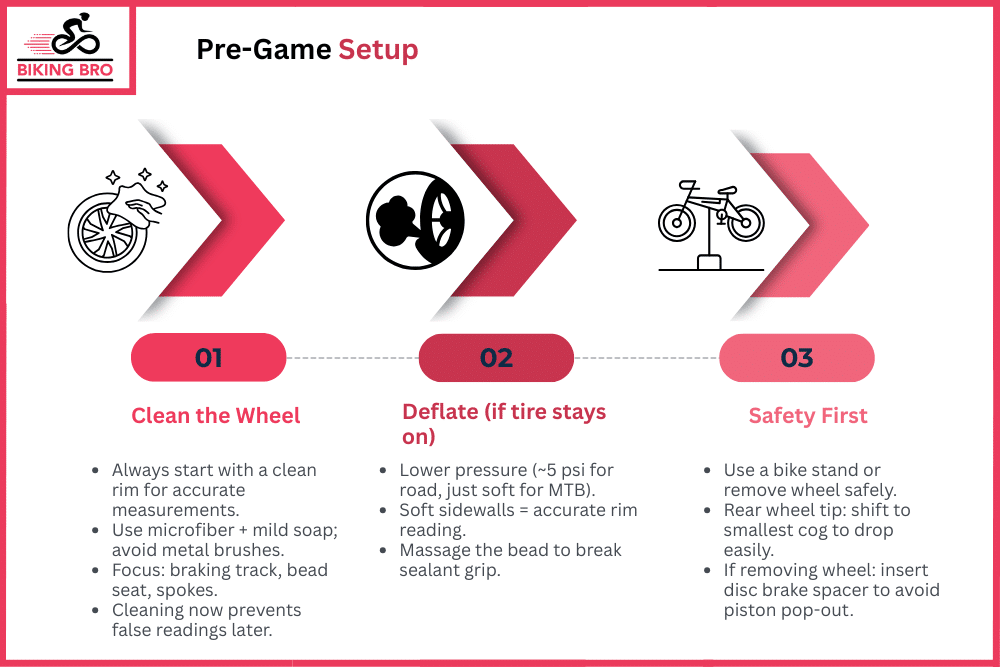

3. Pre-Game Setup
3.1 Clean the Wheel
Start with a spotless rim so your caliper isn’t measuring mud thickness. Grab a microfiber cloth and a splash of bike wash or mild dish soap.
Spin the wheel slowly and wipe the braking track, bead seat, and spokes. Stubborn road grime? Flick it off with a soft nylon brush; metal brushes scratch and ruin accuracy.
Five minutes here saves ten later when numbers suddenly change because you finally rubbed off last season’s sealant.
3.2 Deflate (for tire-on)
If you’re keeping the tire mounted, drop the pressure until it’s a floppy noodle (around 5 psi for road, “just holds shape” for MTB).
This lets the sidewalls relax so the caliper jaws can hug the rim, not the rubber. Press the valve core with a fingernail, listen for the hiss, then massage the bead all the way around to break any sealant glue.
Think pancake, not donut; a collapsed tire is easier to push aside for an unobstructed bite.
3.3 Safety First: Wheel Removal or Bike Stand
Working on the bike? Clamp the seat-post in a stand so the wheel spins free and eye-level. Prefer pulling the wheel?
Flip the quick-release or thru-axle and stash the skewer somewhere safe (voice of experience speaking). Keep the chain on the smallest cog to drop rear wheels without wrestling the derailleur.
Always slip a brake-caliper spacer back in if you run discs; nothing ruins a Saturday like squeezing the lever and popping pistons while the rotor sits on the floor.
4. Method #1: Measuring Rim Width With the Tire Still On
4.1 Find the Bead Seat “Sweet Spots”
Pick two spots opposite each other, think 12 o’clock and 6 o’clock. Gently pinch the tire sidewall and peek inside with a flashlight. You’re hunting for the bead seat, that tiny shelf where tire and rim lock together.
Skip over any big logos or dented areas; they can throw the numbers off. Once you see clean alloy (or carbon) all the way around, you’ve found your sweet spot.
4.2 Caliper Placement Tricks
Zero the calipers, then slide the thin “inside-jaw” tips between tire and rim. Keep the jaws perfectly square to the wheel; angling them even a hair widens the reading.
Tap the “hold” button if your model has one, so roadspray or shaky hands don’t nudge the digits.
For rims deeper than your calipers’ reach, come in sideways, squeeze lightly until the jaws kiss both bead seats, then roll your thumbwheel one extra click and back off, that micro-back-out removes jaw flex.
Spin the wheel 90 degrees and repeat; if your numbers differ by more than 0.2 mm, you’re pressing too hard or sitting on a spoke seam.
4.3 Record & Double-Check Your Reading
Write the first measurement down before you forget. Measure twice more at different points and average the trio.
If you only have calipers, jot the metric value; if you sell bikes online or geek out with friends, add the inch conversion in brackets.
Still unsure? Wrap a tape measure around the rim, mark the overlap, divide by π ≈ 3.14, and confirm the diameter-to-width ratio feels right.
Logging these details now saves you from guessing when you’re tire shopping six months later.

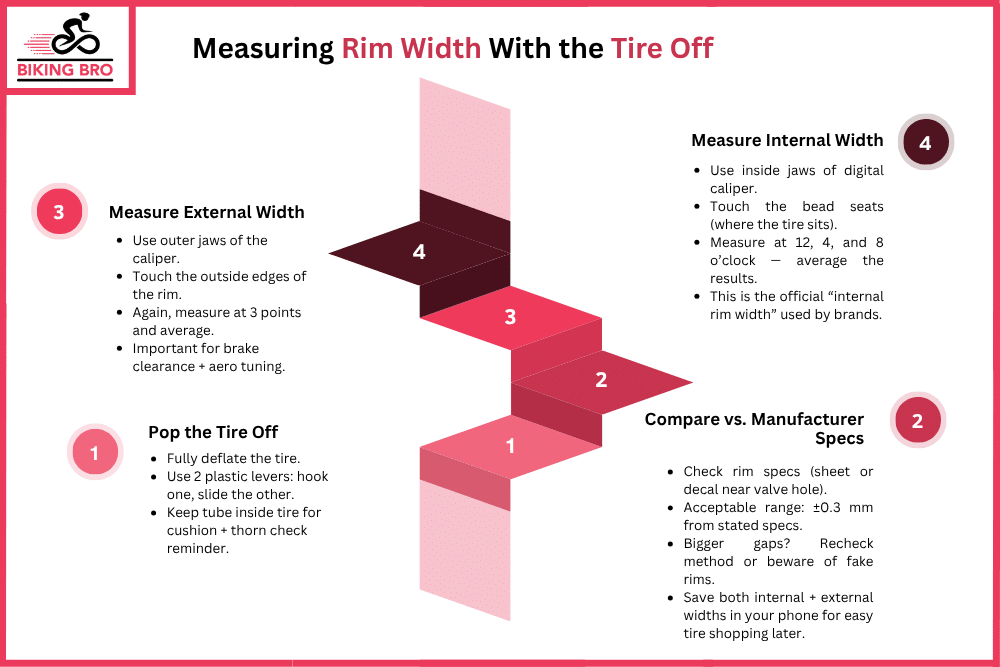

5. Method #2: Measuring Rim Width With the Tire Off
Taking the tire completely off gives you the most accurate reading and a bonus chance to inspect the rim for sneaky dings or hairline cracks that could ruin your next descent.
5.1 Pop the Tire Off (No Pinched Tubes)
First, drop the pressure to zero. Slip two plastic levers under the bead about six inches apart. Pry the first lever over the rim and hook it on a spoke, then walk the second lever around until the bead releases.
I like to keep the tube inside the tire and peel both off together; it acts as a cushion and reminds me to check for thorns later.
Lay the wheel on a clean towel so the rotor, cassette, or hub bearings don’t grind on concrete.
5.2 Measure Internal Width (Between Bead Seats)
Zero your digital calipers. Slide the thin inside jaws down to touch the bead seats, the little shelves that actually support the tire.
Keep the jaws perfectly square and squeeze just enough to feel contact (no death-grip). Take readings at 12, 4, and 8 o’clock, then average them.
Internal width is the “official” number most brands quote, so jot it down to one decimal place.
5.3 Measure External Width (Outside-to-Outside)
Flip the calipers and use the outer jaws to touch the rim’s flanges. External width matters for brake clearance and aero tweaks.
Measure in three spots again; big differences hint at a dent or factory wobble you should true before remounting rubber.
5.4 Compare vs. Manufacturer Specs
Grab the spec sheet (or check the decal near the valve hole) and see how your numbers stack up. Within ±0.3 mm is normal; anything larger usually means user error or, in rare cases, a counterfeit rim.
Note both internal and external figures in your phone so future tire purchases, pressure charts, and frame-fit checks are painless. A two-minute measurement now can save a week of return shipping later.
6. Rim Width Cheat-Sheet
Here’s the “look it up and go ride” chart I keep taped to my toolbox. The numbers are mid-pack averages; check your rim’s spec sheet if you need laser-level accuracy.
| Discipline | Internal (mm) | External (mm) |
|---|---|---|
| Road-classic | 15-17 | 20-23 |
| Road-wide | 19-21 | 25-28 |
| Gravel | 22-25 | 27-30 |
| XC MTB | 24-26 | 29-32 |
| Trail/Enduro | 28-30 | 33-36 |
| Plus/Fat | 35-45 | 40-55 |
How to use it:
- Match your tire: a 32 mm road slick loves a 19–21 mm internal, so the “Road-wide” row is home.
- Check clearance: external width has to sneak past brake pads, chainstays, and fork legs.
- Think ride feel: wider boosts comfort and corner grip; narrower trims weight and can sharpen steering.
Quick rule of thumb: external width usually equals internal + 5-8 mm. Spot a bigger gap and you’ve either mis-measured or uncovered an oddball rim.
7. Pro Tips & Rookie Mistakes to Dodge
7.1 Caliper Zeroing
Calipers lie when you rush them. Before every single measurement, absolutely close the jaws gently, wipe off dust, and hit the zero button.
Got two sets? Check one against the other; if they disagree, swap the battery or re-zero until both read 0.00 mm. Skipping this step is the fastest route to phantom millimeters, and a tire that rubs the frame.
7.2 Measuring Carbon vs. Alloy
Carbon rims hate point pressure. Squeeze too hard and you can bruise the resin, especially on feather-light road hoops. Use just enough force to feel contact, then back off a hair.
Alloy is tougher but bends if you clamp near a dent. Always measure away from valve holes, seams, or spoke joins.
If readings jump more than 0.3 mm around the clock, you’ve found a warp that needs a quick truing session before new rubber goes on.
7.3 Recording Results for Future Tire Swaps
Don’t trust memory-store numbers. Snap a photo of the caliper display beside the rim, then rename the file “Front_Roval_CLX_25i_June25.jpg.”
Add your internal and external widths to a simple spreadsheet with columns for rim name, date, and tire size you ran.
Six months down the road, you’ll know exactly which 40 mm gravel tire fit, what pressures felt best, and whether the rear rim spread a hair after that rock-garden crash.
This tiny database turns future tire shopping into a 60-second search instead of forum roulette.
8. Smart Answers to Common Rim Questions
8.1 Does wider always mean faster?
Not automatically. A wider rim lets your tire sit plumper, dropping rolling resistance on rough pavement and boosting corner grip. That feels quick when the road is bumpy.
On glass-smooth tarmac, though, the extra width can add a touch of aero drag, so an ultra-wide setup may cost you a watt at race speed.
Aim for a combo where the inflated tire is about five percent wider than the rim’s external width. That balance keeps speed, comfort, and handling in sync.
8.2 Can I eyeball it with a tape?
A tape measure beats pure guesswork but it’s still crude. You wrap the tape, hold it level, and squint at millimeter marks hiding under your thumb.
In my garage test the same rim read 20, 21, and 22 mm depending on coffee intake. Digital calipers cost about the same as one fancy tire and cut the error to 0.1 mm.
Keep the tape only as a Plan B when your caliper battery dies.
8.3 What’s ETRTO and why should I care?
ETRTO stands for European Tyre and Rim Technical Organisation. Their chart is the sizing bible. An ETRTO code like 622-19 means 622 mm bead-seat diameter and 19 mm internal width.
A tire marked 28-622 will sit perfectly on that rim. Stick with matching codes and you dodge burps, blowouts, and late-night return labels.
